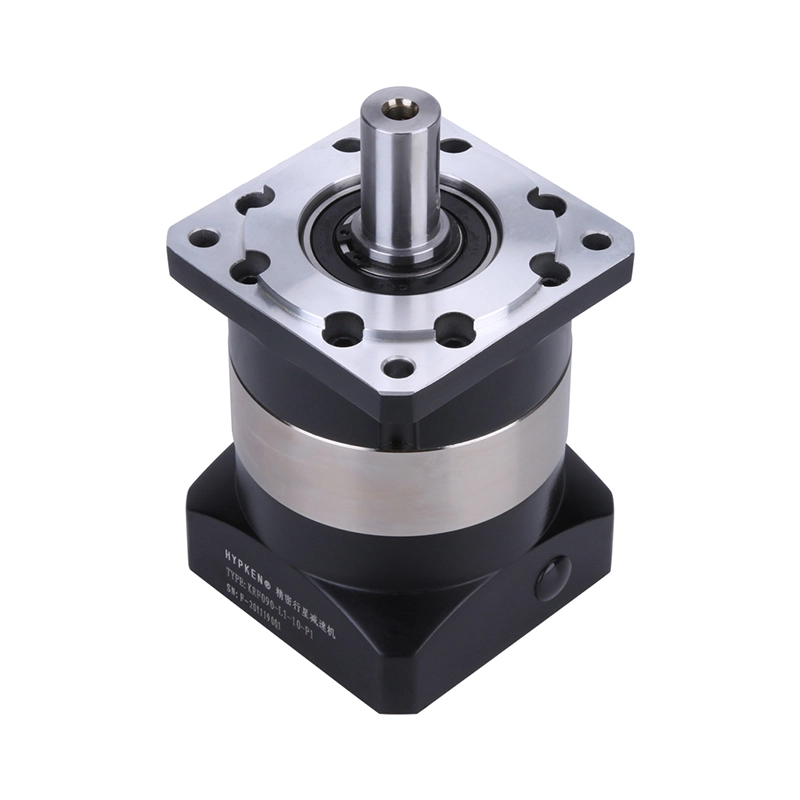

KRF Series Planetary Gearbox is engineered for high-torque, low-noise industrial applications. Its integrated planetary gear train ensures uniform force distribution, delivering reliable power transmission for heavy-load tasks.

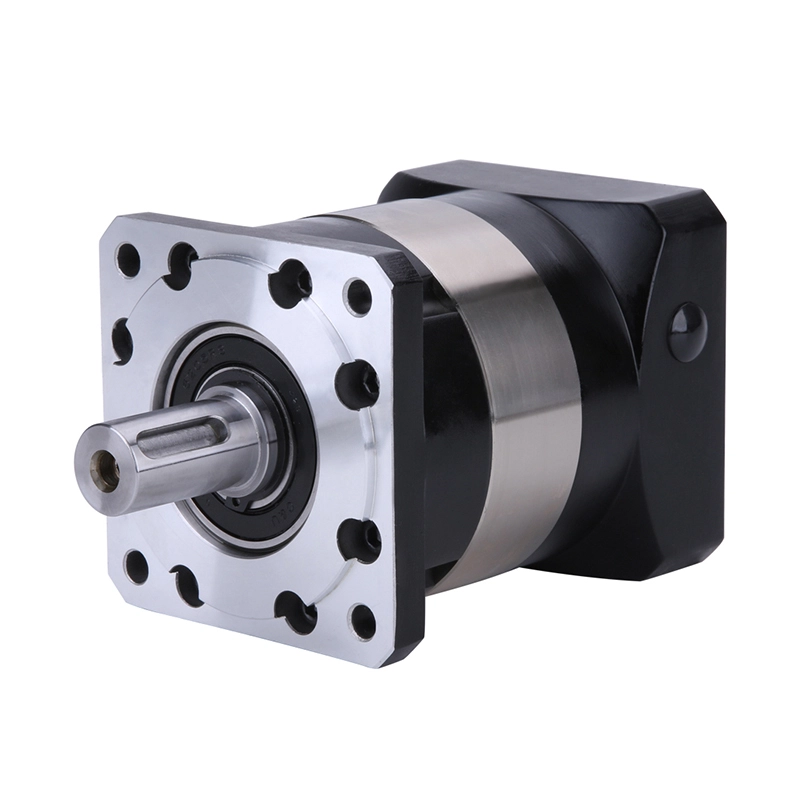

Adopting precision ground gears and a rigid cast steel housing, the KRF Series achieves low backlash (≤1.5 arcmin) and exceptional positional stability. It’s ideal for precision machining and automated positioning systems.

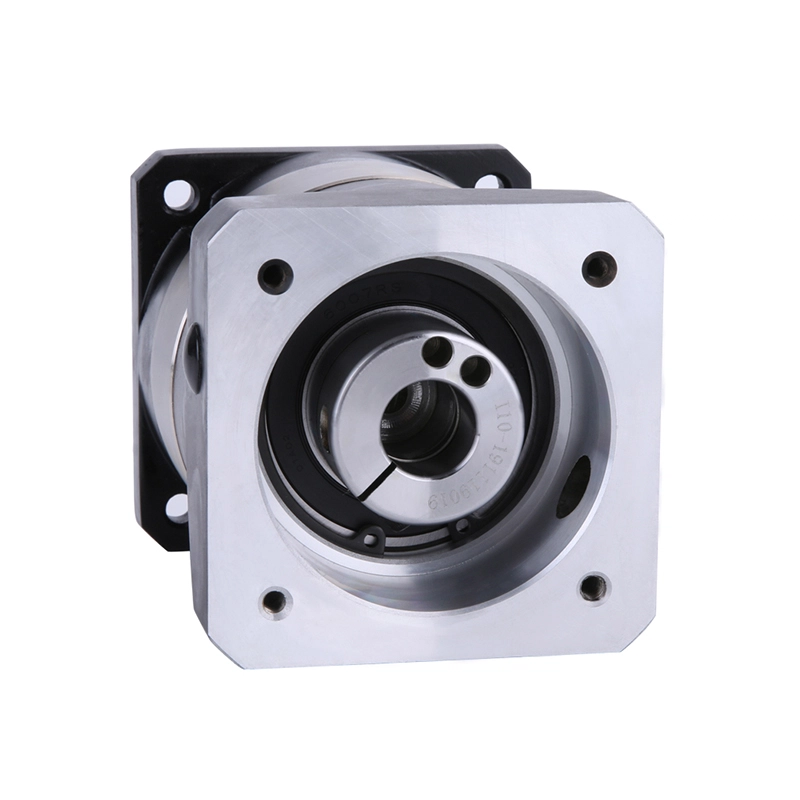

With IP67 fully sealed protection, the KRF Series resists dust, water immersion, and corrosive substances. It operates stably in extreme temperatures (-25°C to 140°C) and harsh industrial environments.

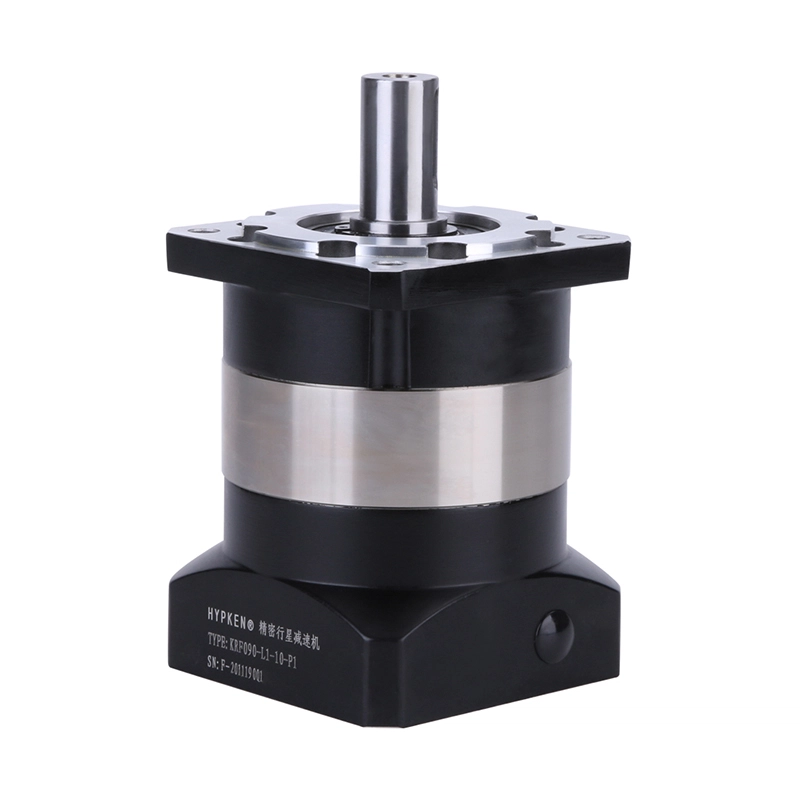

The KRF Series supports multiple mounting orientations (flange, shaft, foot) and is compatible with servo, stepper, and hydraulic motors. Standardized interfaces enable quick integration with existing equipment.

Planetary Gearbox KRF Series

Planetary gearbox: compact, high torque & precision, efficient, high rigidity, long life. For automation & robotics.

Product Name Planetary Gearbox
Gearing Arrangement Planetary
Flange Size KRF40/60/90/120/140/160
Brand Name HYPKEN
Place of Origin Guangdong, China
Warranty 18 months
Application CNC machining, Gravity casting, Sand casting, Precision machining ect.
Design Customized as required
Trade Terms EXW, DAP,DDP, FOB ,CIF,CFR
Payment Terms T/T 30%-50% deposit, the balance before shipment, Paypal, Alipay，Wechat,ect.
Test Test equipments and workers, 100% inspection before shipping
Category Tag Brand:

Description

Summary

Method Orchid axis output, standardized size

Input connection specifications complete, a variety of choices

Straight tooth drive single cantilever structure, simple design, very cost-effective

Smooth operation, low noise

The entry shaft can be keyway

Return clearance 8-16 arcminutes

Sufficient inventory and fast delivery

Dedicated one-on-one technical support team

Exclusive customer service to respond quickly to your needs



Application

Suitable for Automated Production Line、Industrial Robots、CNC Machine Tools、Packaging Machinery、Three-Dimensional Warehouse、Wind Power Equipment…







Parameters

Specification range:40-160

Speed ratio range:3-100

Accuracy range:8-16arcmin
