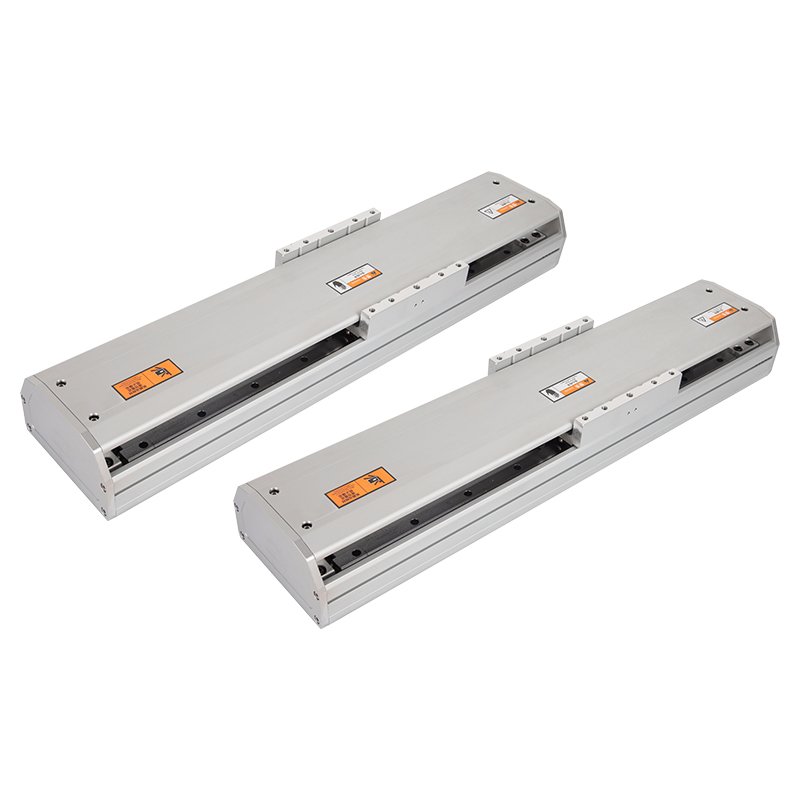

HTH Series Linear Guide is engineered for high-precision linear motion, featuring ultra-low friction and high rigidity. Its precision-ground raceways ensure consistent positioning accuracy (≤0.01mm), ideal for CNC machining and automated inspection equipment.

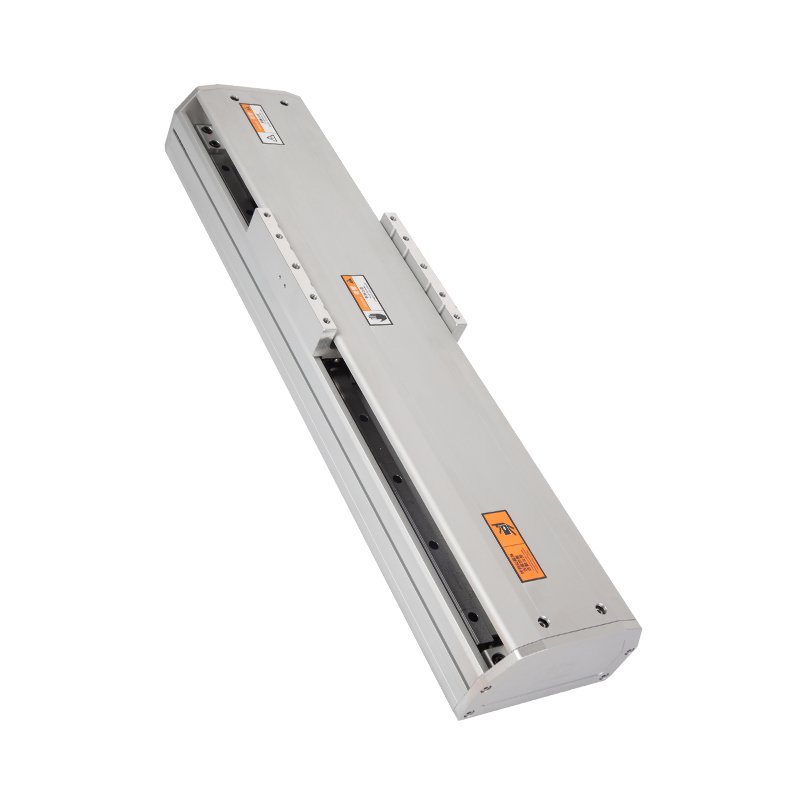

Crafted with high-carbon chromium steel and anti-rust surface treatment, the HTH Series resists wear and corrosion. It supports optional IP65 protection to adapt to harsh industrial environments, matching the protection level of servo cylinders and gearboxes.

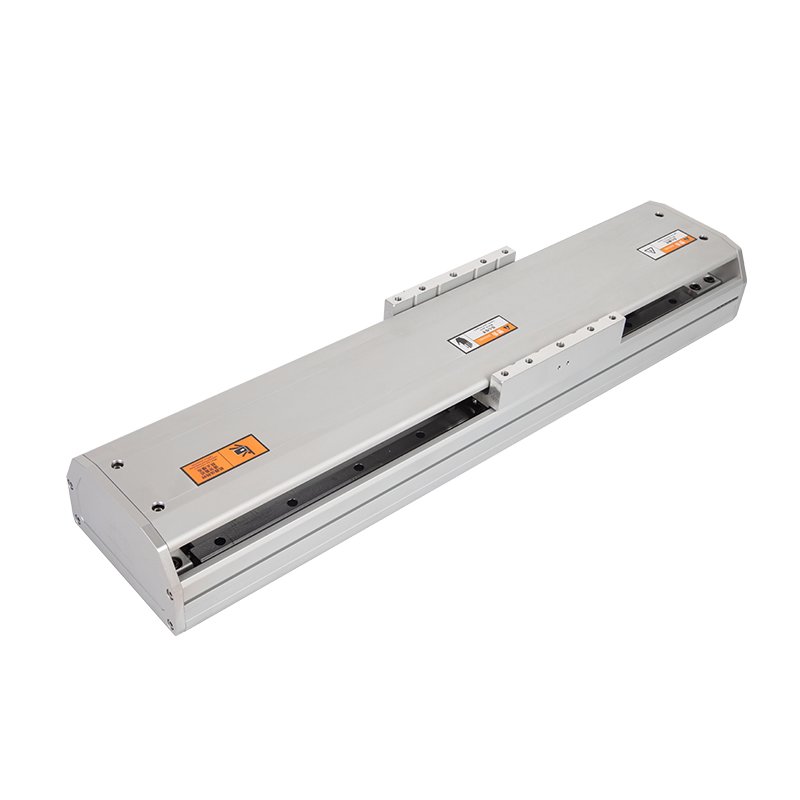

The HTH Series offers multiple mounting options (flange, through-hole) for flexible integration. It’s perfectly matched with the KTN Series hollow rotary platform and electric servo cylinders, forming a complete precision motion system

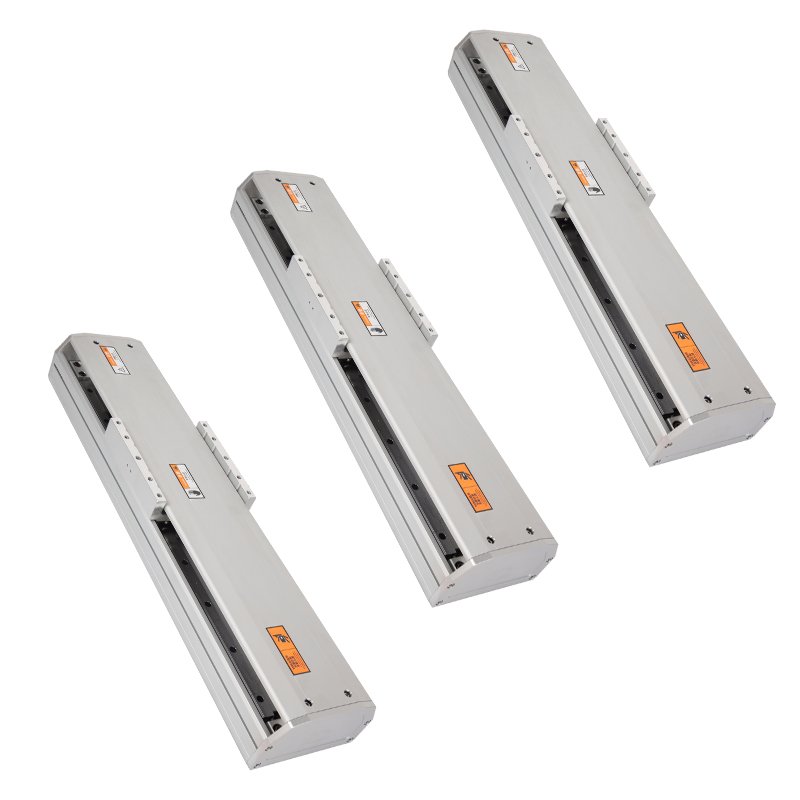

With a four-row ball bearing structure, the HTH Series delivers excellent radial and axial load capacity. It maintains stable operation even under heavy loads, suitable for robotics and heavy-duty CNC equipment.

Linear Guide HTH Series

High-precision linear modules for automation. Achieve smooth, reliable motion in compact spaces. Ideal for pick-and-place, scanning, and precise positioning. Boost your machine’s performance. Automation solutions engineered for excellence.

Product Name Linear Guide
Model HTH
Material Stainless Steel & Aluminum. Available in bearing steel.
Brand Name HYPKEN
Place of Origin Guangdong, China
Warranty 12 months
Application router/mill/lathe sleds, 3D printers, laser engravers, CNC machines, trainer rocker plates, etc.
Design Customized as required
Trade Terms EXW, DAP,DDP, FOB ,CIF,CFR
Payment Terms T/T 30%-50% deposit, the balance before shipment, Paypal, Alipay，Wechat,ect.
Test Test equipments and workers, 100% inspection before shipping
Category Brand:

Description

Summary

High-Precision  Positioning: Repeat positioning at  level ±0.01mm

Strong Load Capacity：supports >50kg heavy load,  rigid resistance to torque

Long Life：Closed design, long life, low operation and maintenance cost

Sufficient inventory and fast delivery

Dedicated one-on-one technical support team

Exclusive customer service to respond quickly to your needs



Application

CNC Machine Tools、Automotive Parts Production、3C Electronics Assembly、Packaging Machinery、Semiconductor Equipment、Biopharma Laboratories、TFT-LCD Panel Inspection、Logistics Sorting Centers、Smart Warehouse Systems

Parameters

Body width：65-220mm

Maximun stroke：800-2300mm

Maximun load：30-150KG
