KTN Series Hollow Rotary Platform integrates a unique hollow shaft design with Angle Series-compatible features. Its 90° angle design and flexible mounting options (flange, shaft) fit diverse equipment layouts, ideal for space-limited precision setups.
Ideal for robotics, CNC machining, and automated inspection lines, the KTN Series combines Angle Series adaptability (90° angle design) with fully enclosed housing and IP54 protection. Its hollow shaft supports through-axis wiring/feeding.
Equipped with fully enclosed housing and IP54 protection, the KTN Series resists dust and moisture in harsh industrial environments. Inside, wear-resistant gears and copper windings ensure stable operation and extended service life.
Designed for high-precision positioning (repeatability ≤0.005mm), the KTN Series features wear-resistant gears and copper windings for smooth power transmission. Its 90° angle design enhances compatibility with Angle Series auxiliary components.
The KTN Series offers low maintenance thanks to sealed lubrication and durable build (wear-resistant gears, copper windings). Combined with flexible mounting and IP54 protection, it reduces operational downtime significantly.

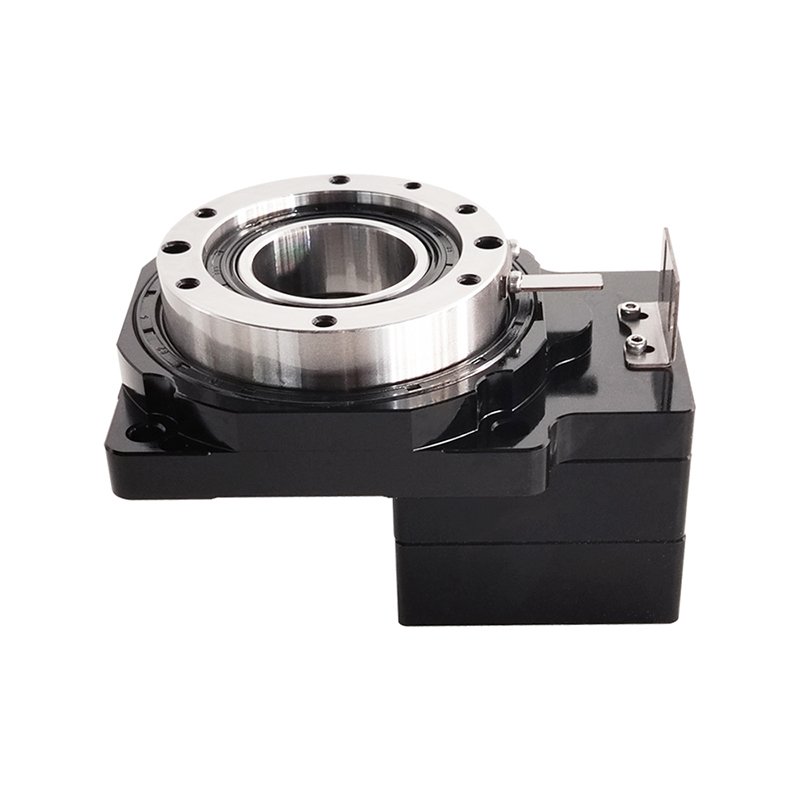

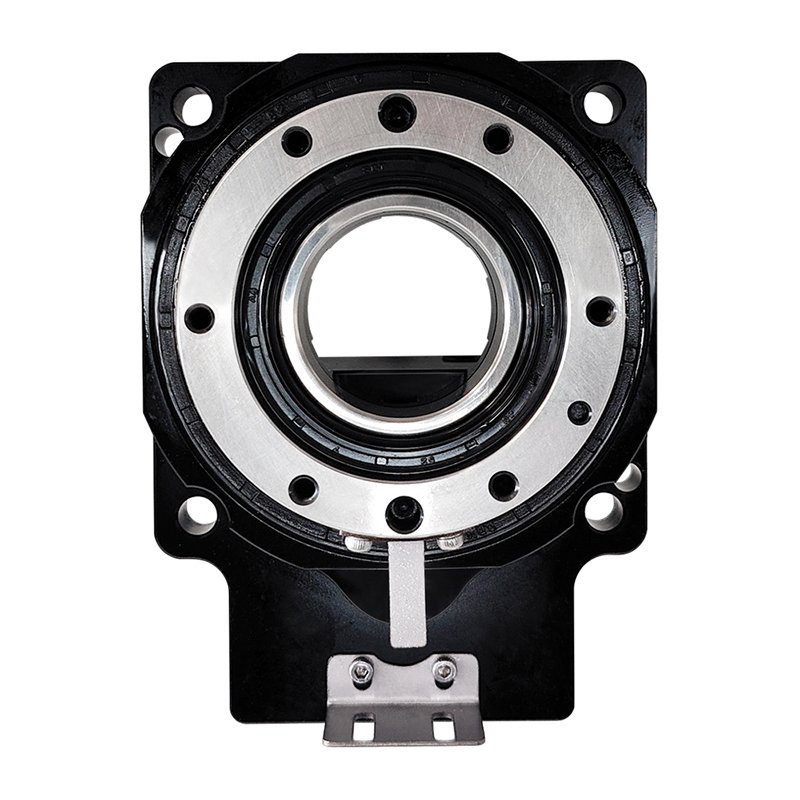

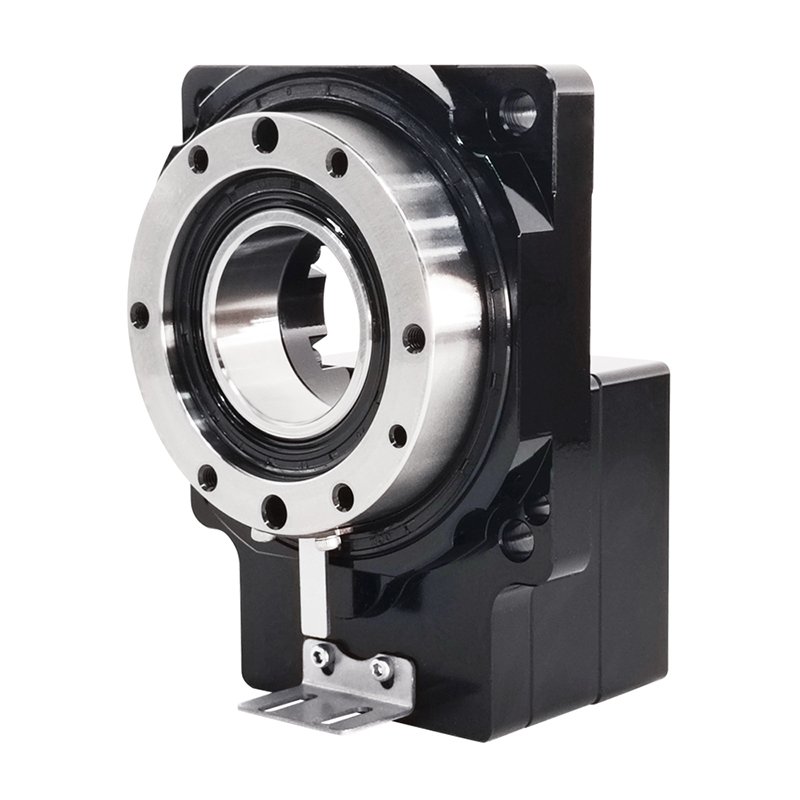

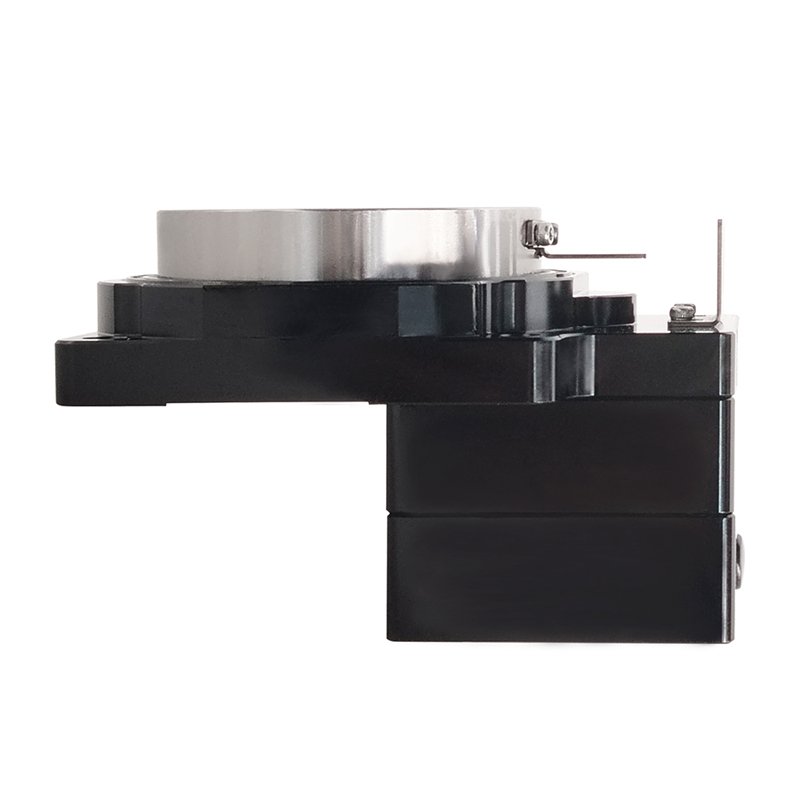

Hollow Rotating Platform KTN Series

Hollow Rotating Platform: unlimited angular adjustment via worm/gear drive, high precision & load, stepper/servo motor options.

Product Name Hollow Rotating Platform
Gearing Arrangement Planetary
Flange Size KVFN60/90/120
Brand Name HYPKEN
Place of Origin Guangdong, China
Warranty 18 months
Application Machinery Manufacturing and Automation、Packaging Industry、Printing and Papermaking Industry、Glass and Ceramics Processing、Testing and Measuring Equipment.
Design Customized as required
Trade Terms EXW, DAP,DDP, FOB ,CIF,CFR
Payment Terms T/T 30%-50% deposit, the balance before shipment, Paypal, Alipay，Wechat,ect.
Test Test equipments and workers, 100% inspection before shipping

















Category Brand:

Description

Summary

With excellent rotation accuracy, Withstand large axial and radial loads

Stability ring boosts overturning moment, resolving side/hoisting loads

Precision manufacturing process grinding, More detailed, more beautiful

Sufficient inventory and fast delivery

Dedicated one-on-one technical support team

Exclusive customer service to respond quickly to your needs



Application

Machinery Manufacturing and Automation、Packaging Industry、Printing and Papermaking Industry、Glass and Ceramics Processing、Testing and Measuring Equipment





Parameters

Model number: 060、085、130、200、280、450

Score: 5、10、18

Repeated positioning accuracy:±15arcsec
